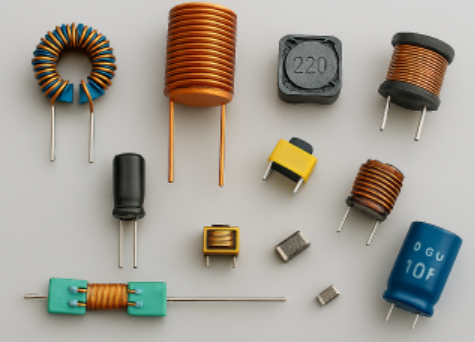

Inductors
Inductors
Inductors store energy in magnetic fields to filter noise, block AC, and tune resonant circuits.
We supply SMD (0402–1210), air-core, toroidal, drum-core, and power chokes up to 100A. High-Q, shielded, and automotive-grade options from 1 nH to 100 mH for all applications.
- ✓ Air Core – Simple coil without a magnetic core; used in high-frequency circuits
- ✓ Iron Core – Coil wound around iron; high inductance for power applications
- ✓ Ferrite Core – Reduces losses at high frequencies; ideal for RF and switching
- ✓ Toroidal – Coil wound around a donut-shaped core; compact and efficient
- ✓ Axial & Radial – Leaded inductors for general-purpose use
- ✓ SMD (Surface-Mount) – Compact inductors for PCB mounting
- ✓ Molded & Coupled – Used in power supplies and transformers
- ✓ RF Inductors - Air/ceramic core, high Q, 1 nH–1 µH Oscillators, RF
- ✓ Power Inductors- Shielded, high current (1A–100A+), 0.1–100 µH DC-DC converters
- ✓ Chip Beads (Ferrite) High impedance at RF, low DC resistance EMI suppression
Common Packages of Inductors
Through Hole
Axial Leaded
- ✓Small Size L5×Ø2.5mm for 1–100 µH, ≤0.5A
- ✓Medium Size L8×Ø3.5mm for 10 µH–1 mH, 0.3–2 A
- ✓Large Size 12×Ø5 mm for 100 µH–10 mH, 1–5 A
- ✓6 × 8 mm 10 mm 1–47 µH 1–3 A
- ✓8 × 10 mm 12 mm Most common 2–6 A
- ✓10 × 12 mm 15 mm 10–470 µH 3–10 A
- ✓14 × 18 mm 20 mm 100 µH–10 mH 5–20 A
- ✓10×5×5mm (OD×ID×H) for 1–100 µH, ≤5 A
- ✓16×8×7mm (OD×ID×H) for 10 µH–1 mH, 3–15 A
- ✓25×12×10mm (OD×ID×H) for 47µH–10 mH, 10–30 A
- ✓50+ for 1 mH–100 mH, 20–100 A
- ✓8 × 10 mm 12 mm Most common 2–6 A
Radial Drum / Bobbin Core
Toroidal Inductors
SMD
- ✓0201, 0402, 0603, 0805, 1008, 1206, 1210, 1812, 2020
