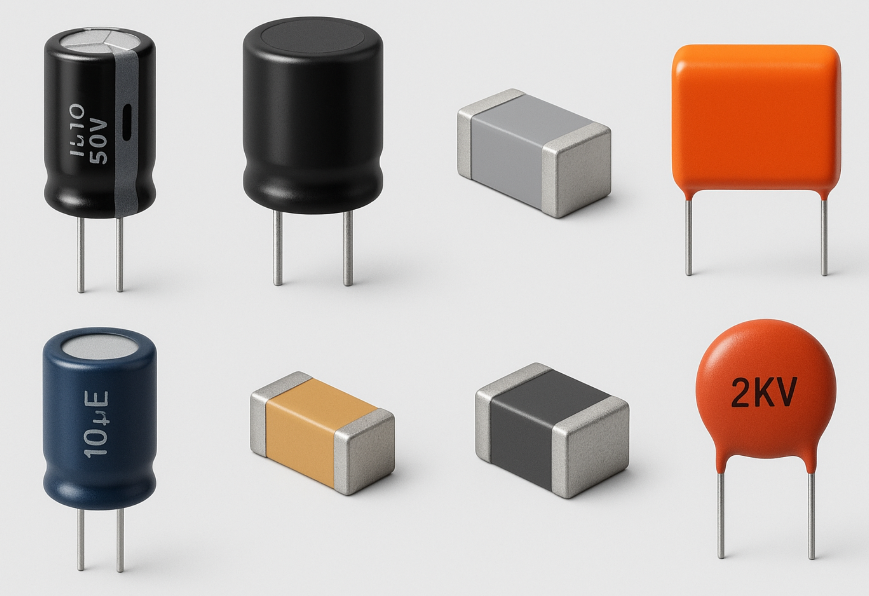

Capacitors
Capacitors
Capacitors store and release energy to filter noise, couple signals, and stabilize power supplies.
We supply multilayer ceramic (MLCC), aluminum electrolytic, tantalum, and film types from 0.1 pF to 10,000 µF. SMD (0201–2220) and through-hole packages with voltages up to 3 kV for all industries.
- ✓ Ceramic Capacitors: Disc Type, MLCC, High Voltage
- ✓ Electrolytic Capacitors: Aluminum, Tantalum, Niobium, Polymer
- ✓ Film Capacitors: Polyester (Mylar), Polypropylene (PP), Polycarbonate, Polystyrene, PTFE (Teflon), Metallized Film
- ✓ Supercapacitors: High capacitance applications
Common Packages of Resistors
Through Hole
Ceramic Disc:
- ✓Ø3-5mm pitch 2.5x5mm for 50V-1kV, 1pF-47pF
- ✓Ø6-12mm pitch 2.5x5mm for 1-3kV, 100pF-220nF
- ✓Aluminum Electrolytic Radial
- ✓CAN Ø5x11mm pitch 2mm for 6.3-100V, 0.1-100uF
- ✓CAN Ø8x11.5mm pitch 2mm for 6.3-450V, 1-470uF
- ✓CAN Ø10x16mm pitch 2mm for 16-450V, common rating
- ✓CAN Ø18x40mm pitch 2mm for 400-450V, 100-10000uF
- ✓Snap-in Ø22–35 × 25–50 mm H 2/3 pins for 400–450V, 47–2,200 µF
- ✓Film Capacitors
- ✓MKP/MKT Box 7.5×4×3– 42×20×35mm for 63–2kV1, nF – 10 µF
- ✓Radial Film Ø 5–15× 15–40 mm for 250–1.6kV1 nF – 4.7 µF
- ✓Tantalum (Through-Hole)
- ✓Case A–E (axial/radial), 6.3–50V, 0.1–470 µF
SMD
- ✓Aluminum Electrolytic
- ✓Case Code B Ø4×H5.5mm for 4–50V, 1–100 µF
- ✓Case Code D Ø6.3×H5.8mm for 6.3–100V, 10–470 µF
- ✓Case Code G Ø10×H10mm for 6.3–450V, 47–1500 µF
- ✓Tantalum
- ✓Case A (3216) for 2.5-35V, 0.1-100uF
- ✓Case B (3528) for 4-50V, common rating
- ✓Case D (7343) for 6.3-63V, 10-1000uF
- ✓MLCC
- ✓0201, 0402, 0603, 0805, 1206, 1210, 1812, 2220
