Diodes
Diodes
- ✓ Diodes ensure reliable rectification, protection, and signal control in every circuit.
- ✓ Diodes enable rectification in power supplies, protection against reverse polarity, and signal demodulation in RF circuits.
- ✓ We provide a comprehensive range of diodes precision-engineered to meet the demanding specifications of diverse industries.
Types of Diodes
- General Purpose (PN Junction Diode): Used for rectification and general switching.
- Power Diode: High current rating, used in power rectifiers.
- Light Emitting Diode (LED): Used as indicators and for display lighting.
- Photodiode: Used in sensors and optical communication.
- Zener Diode: Used for voltage regulation and protection.
- Schottky Diode: High-speed switching and rectification.
- Varactor / Varicap Diode: Used in tuned circuits and RF design.
- Tunnel Diode: Used in high-frequency oscillators.
- Laser Diode: Used in optical communication, CD/DVD drives.
- PIN Diode: Used in RF switches and attenuators.
- Avalanche Diode: Used for surge and voltage protection.
- Gunn Diode: Used in microwave oscillators.
- TVS Diode: Protects circuits from voltage surges.

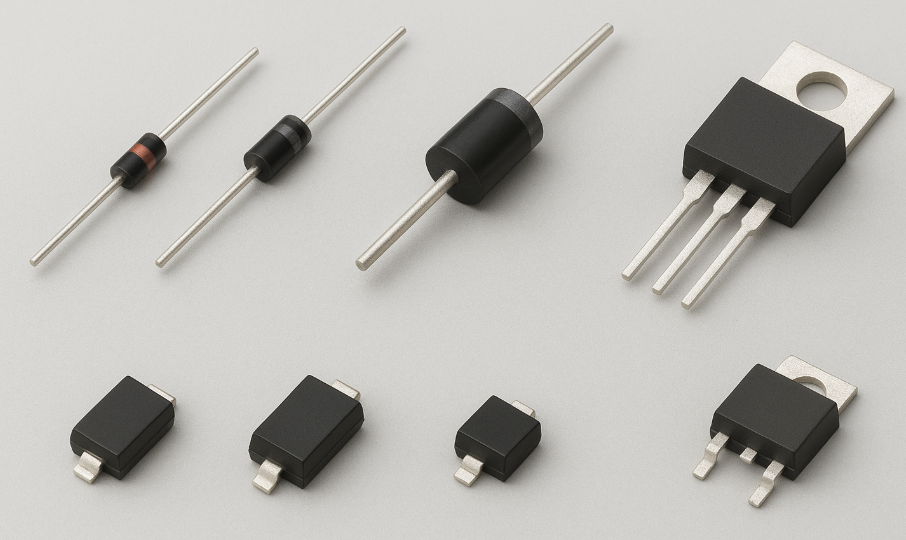

Common Packages of Diodes
Through Hole (THT)
- ✓Glass Axial: DO-35, DO-41, DO-204
- ✓Plastic Axial: DO-15, DO-201, DO-27
- ✓Metal Case / Stud Mount: DO-4, DO-5, DO-8, TO-48, TO-65
- ✓ Plastic Power Package: TO-220, TO-218, TO-247, TO-3P, TO-3 (metal can), GBU, KBP, KBL
- ✓LEDs: 3mm, 5mm, 8mm, 10mm, Rectangular, Oval,
Surface Mount (SMD)

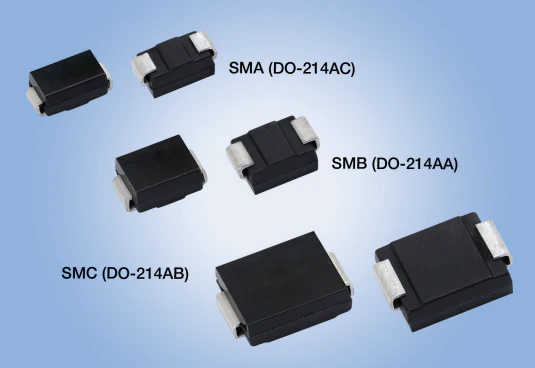

- ✓SOD-123, SOD-323, SOD-523, SMA (DO-214AC), SMB (DO-214AA), SMC (DO-214AB), SOT-23, SOT-223, DPAK (TO-252), D2PAK (TO-263)
- ✓LEDs: 0402, 0603, 0805, 1206, 1210, 3528, 2385, 3030, 3535, 5050, 5630
